Application fields: Automation of temperature control and material drying and conveying in chemical, plastic, rubber, corrugator, food, asphalt, shipbuilding, electronics, synthetic fiber, coating & automobile and other industries.
Safety: No oil collection plate structure, no dead angle to the flow of thermal medium oil, to prevent the risk of oil leakage due to the high pressure of oil collection plate breakage.
High efficiency: Three-layer boiler shell insulation, with inner layer of ceramic fiber, middle rock wool board and outer covering of lightweight cement, to reduce heat loss and improve the strength of the outer package.
Convenience: The combustion chamber manhole provides quick inspection and maintenance; with a flame viewing window, the combustion condition can be clearly monitored; the quick-opening door cover provides quick inspection and maintenance, and the special structure has no smoke leakage problem.
Features: With explosion-proof port to prevent the ignition of the furnace chamber from bursting and unloading pressure in time.
2 Years Quality Guarantee
Satisfaction Guarantee
On Time Delivery Guarantee

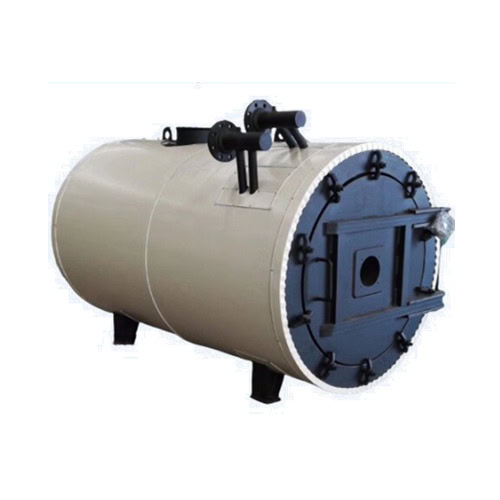

Oil (gas) heat-conducting oil heater from “DELON” is an assembled forced circulation oil (gas) boiler. This series of boiler body heating surface structure is compact, the heating surface consists of inner and outer dense row of discs, the inner coil for radiation heating surface, the outer coil and the outer surface of the inner coil constitute convection heating surface.
After the fuel is fully burned in the combustion chamber, most of the heat is absorbed by the radiant heating surface, and then the high temperature flue gas enters the convection heating surface for heat exchange, and is heated in the air preheater (options) after leaving the boiler, and then the flue gas is discharged into the atmosphere through the chimney.
Delon certified components & parts with additional warranty
By using the PLC control system, the max. temperature precision is ± 0.5 °C
Less fuel(gas) consumption by using the energy saving device/air preheater.
1. Designed in accordance with PED, ASME and GB standards.
2. Intelligent Human Machine Interface system by PLC+touch screen.
3. The electrical components are from Siemens, Schneider, Omron and other international famous brands.
4. Optional design for the Ex-proof standard (ATEX / IECEx).

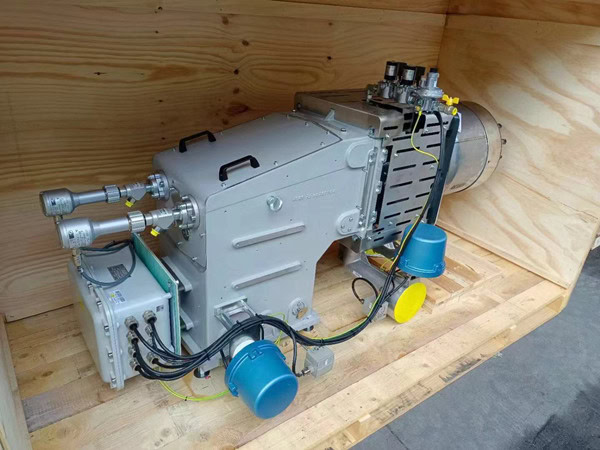

1. By use of international brands, including Weishaupt, Oilon, Riello…, in accordance with EN267 & EN676.
2. Options for low nitrogen models, meeting the environmental requirements.
3. The resistance wire is the alloy resistance wire imported from Sweden, with high energy efficiency ratio.
1. Smooth operation, low vibration, low noise, and multi-stage seal design for sealing structure.
2. High temperature heat transfer oil: +50℃ ~ +350℃
3. Working ambient temperature: -5℃ ~ +40℃
4. Options for Siemens Motor

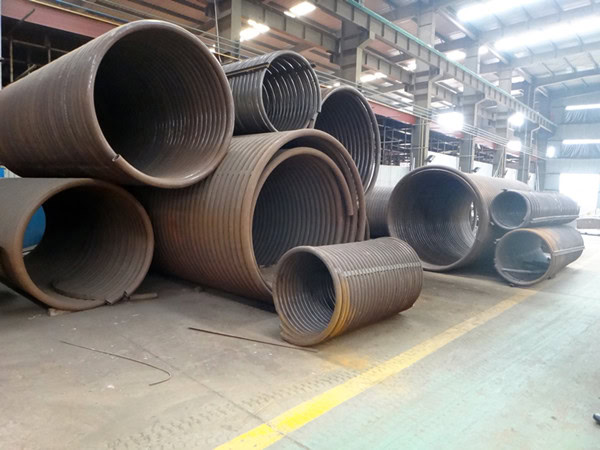

1. The middle of the coil is welded by carbon steel and stainless steel to ensure long-term and stable operation.
2. Each set of coils will be subjected to a hydraulic pressure test with a pressure of 21bar.
3. Options for SUS304L and SUS316L.
The new purchase and delivery of a thermal oil heater could be stressful and time-consuming. Importing for beverage machinery can be confusing when one is not familiar with the transaction process. Here are a few simple steps on how to order our heaters.

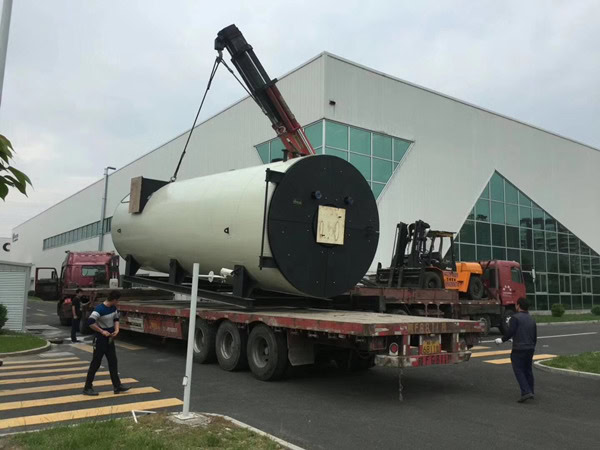

There are different transportation modes for options. Air transport is fast but expensive, it’s a good choice for urgent orders, and it only takes 7-10 days at most. Ocean shipping is the most economical shipping method, the shipping time is longer than that of air, and takes 10-50 days.

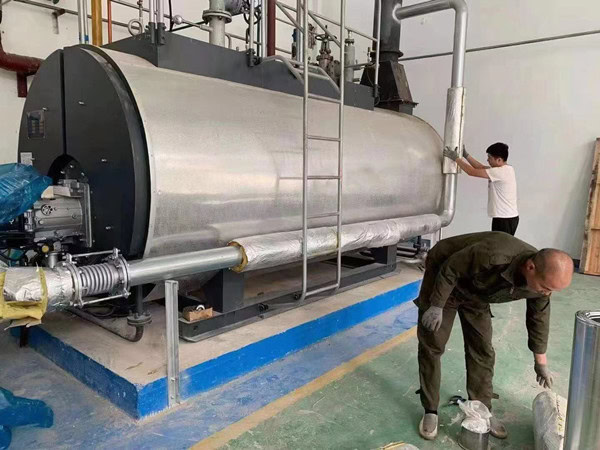

Our installation services can help you tackle a variety of projects, whether you are updating your heating or cooling system with new thermal oil heaters, water-type mold temperature controllers or the chillers, contact us to know more about DELON’s installation options for your projects.

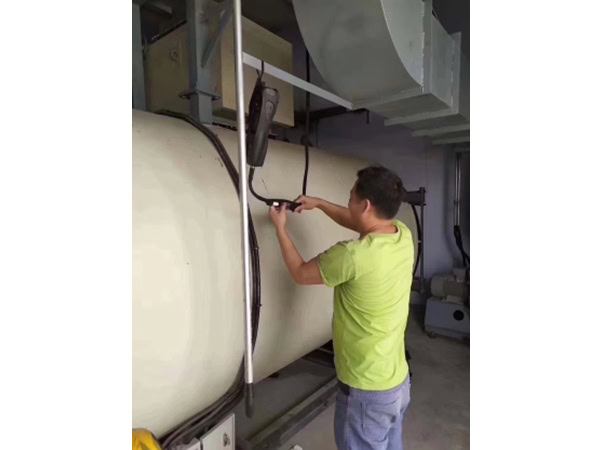

At every stage of an end-of-line thermal oil heater project, our after-sales service team will always with you!
Our team is available to assist you with day-to-day tasks, including guide installation, commissioning, maintenance and even troubleshooting, etc.
Our skilled people are easy to reach, responsive, and enthusiastic about their work, so you can rest assured that you will be satisfied!
DelonHeater has built a good reputation in the temperature control industry by its excellent quality and competitive price in the world markets.
Our Delonheater holds the CE certificates and passed the ISO 9001, etc.
We accept the transactions in US Dollar, EUR and Renminbi(CNY).
Our shipping agent is response for the customs clearance, pure white customs clearance.
Skilled people serve you pre-sales & after-sales in 7*24 hours.
Delonheater understands the thermal oil heater and mold temperature controller industries with a decade of experience. We participate in the whole journey to ensure you to get the right product that matches the usage and boost your brand with perfect solutions!
